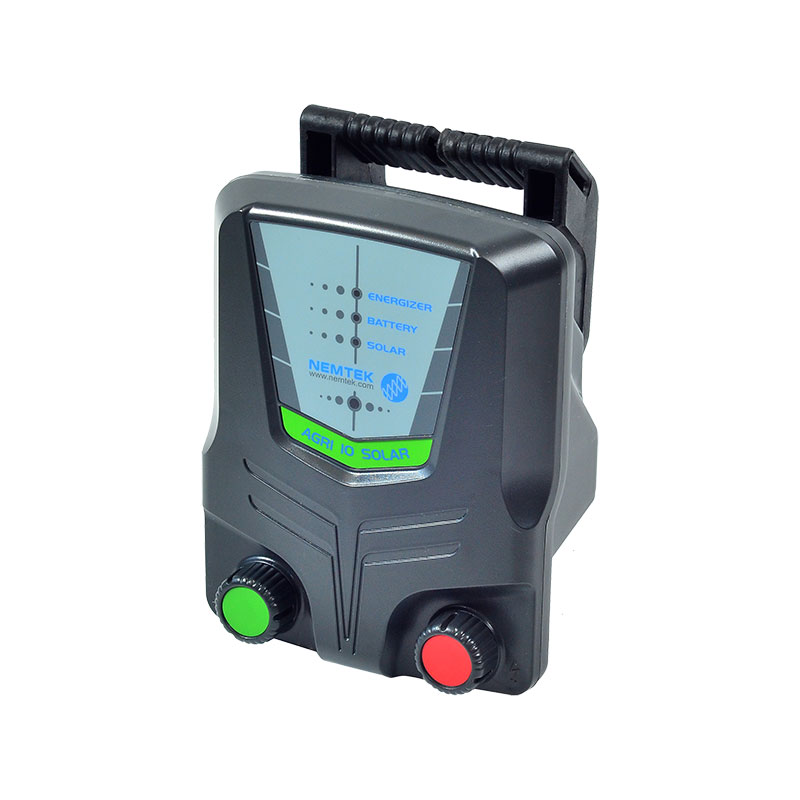

Agri Solar 10km Energizer

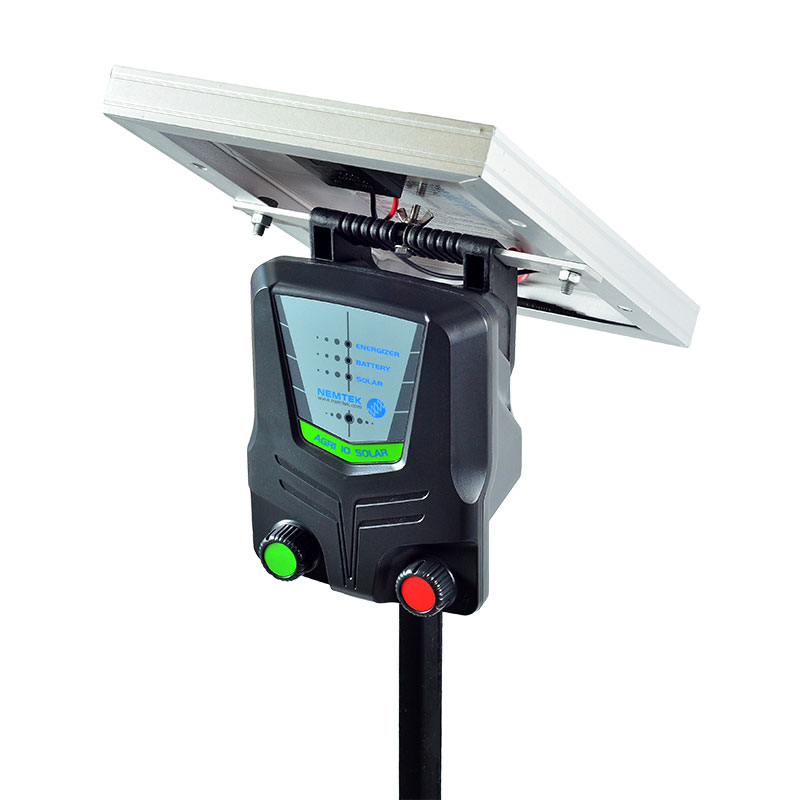

The Agri 10km solar energizer includes a solar panel, which is used to charge a battery during the day to power the energizer. Solar panels are usually provided with a separate solar regulator, but the Nemtek Agri solar range of energizers has a built-in solar regulator. This makes the energizer more portable and makes connecting of the energizer easier.

The built-in regulator has a smart management system to maximise battery life and ensure efficient power management to the fence. These energizers also come with built-in polarity protection for the battery and the solar system to protect them in the event of an incorrect connection. These energizers use Nemtek APT technology, which ensures maximum power is delivered to the electric fence while minimising power losses along the fence line. With APT the energizer responds to changing environmental factors (such as changes in weather and vegetation growth on the fence), and adapts the changing needs of the fence to maximise fence power and efficiency.

Test report - agri energizers 30/50 and solar 10/23/50
Instruction manual for attaching solar panels to the solar agri energizers
Instruction manual for agri solar energizers 10km, 25km and 50km
CE certificate of conformity agri solar range

Features:

  • Powers up to 10km of fence/16 acres/6.4ha (optimal fence conditions)
  • Robust weather resistant system
  • Easy-to-use tag to switch energizer on and off and to toggle between high and low voltage
  • Battery charge state indicator
  • Energizer overload indicator
  • Powered by 10 watt solar panel (included) and 12Ah battery (sold separately)
  • Built-in solar regulator with power management system for easier connection and portability
  • Built-in battery polarity protection
  • Day/night sensor
  • Adaptable mounting options (wall, fence wire or wooden post, tread-in post and can slide onto a Y picket post)
  • Lightning protection
  • Many programmable options via the LCD handheld remote – (optional accessory) including adjustment of fence voltage and pulse rate, independent day/night setting, battery voltage reporting and fence performance monitoring

Specifications:

Weight 4.5 kg
Dimensions

190(L) x 115(W) x 76(D)mm

Output energy max

1J (stored energy 1.4J)

Output voltage

5.5kV @500Ohms
7.5kV @1000Ohms
8.0kV @ Open circuit

Solar Panel

10Watt

IP rating

IP65

Stock CodeDescription
AE-S010Agri Solar 10km Energizer
