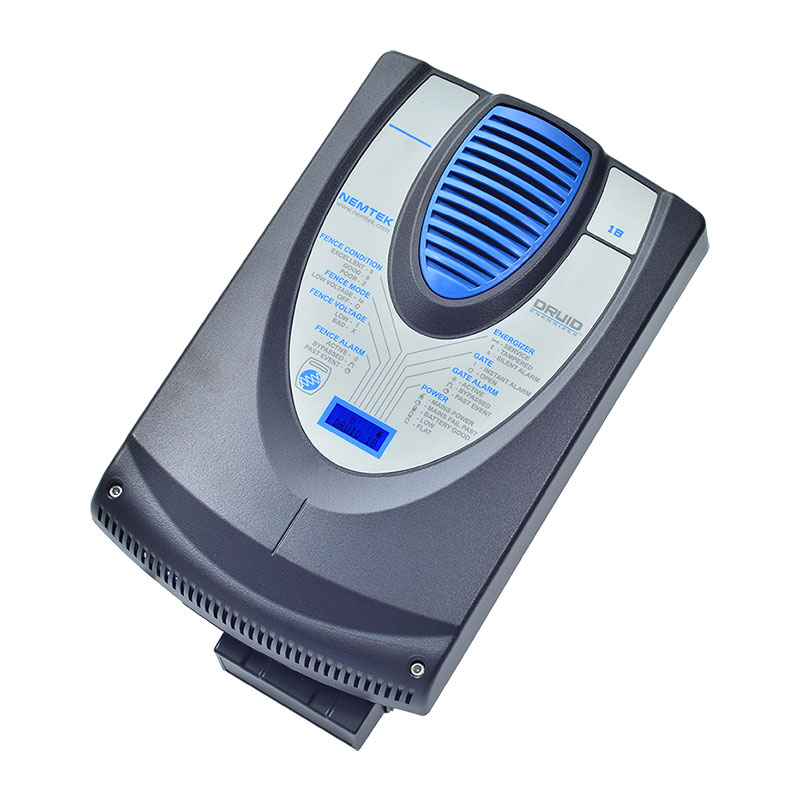

Druid 18LCD Energizer

The LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Using the Adaptive Power Technology (APT) pioneered by Nemtek, these energizers offer a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy. This maximises the power on the fence and minimises false alarms.

Installer Manual Druid 18LCD
User Manual Druid LCD Single Zone Energizer
Test Report Druid 18LCD
Energizer Specifications

Features:

  • 7.6 Joule output energy
  • Ideal choice for long distance series electric fencing systems that require monitoring
  • Robust and flexible design for home, commercial security, industrial and game security and control
  • Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
  • Connectable to armed response radio or GSM module
  • Lightning and power surge protection
  • Intelligent power saving to extend battery life
  • Easy-to-use tag included for controlling the energizer
  • Walk test mode for easy fence testing
  • The LCD background colour changes to easily identify the fence condition
  • Powered by 240V mains and includes built-in battery for back-up power
  • Built-in gate alarm input to monitor if the gate is open or closed
  • Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to two keypads

Specifications:

Weight 7.6 kg
Enclosure size

L370 x W232 x D145mm

Weight

4.8kg excluding battery (7AH)
7.0kg including battery (7AH)

IP rating

IPx4

Operating temperature

-10°C to 50°C

Operating humidity

< 80% non-condensing

Electrical supply voltage

240V

Typical power consumption

25VA (normal operating conditions)

Standby Time

24hrs (fully charged battery)

Energy output

7.6 Joule (500 Ohms load)

Open circuit voltage

9600V

Stock CodeDescription
E-DRUID/18/LCDDruid 18LCD Energizer
