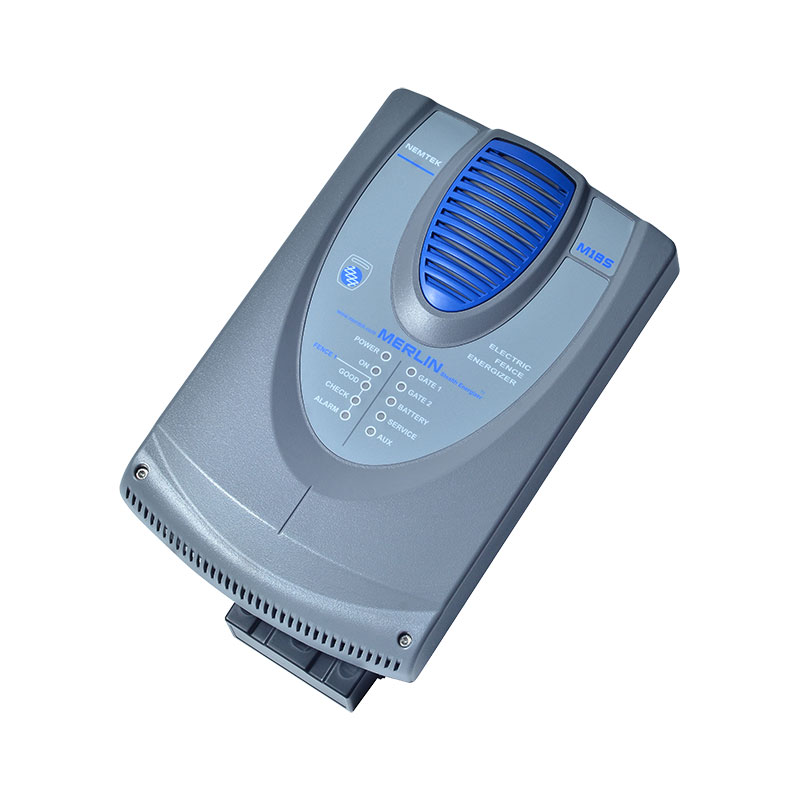

Merlin Stealth M18S Energizer

The Merlin Stealth single zone energizers are a powerful range that can be used from residential to high-end security needs. These energizers can be controlled by a tag and/or a keypad, and can be programmed to offer customised solutions.


Test Report M18S
CE Certificate Merlin Stealth
Installer Manual Merlin Stealth M18S
User manual Merlin Stealth V1.2

Features:

  • 4.8 Joule output energy (single zone)
  • Robust and flexible design for home, commercial and industrial security
  • Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
  • Connectable to armed response radio or GSM module
  • Lightning and power surge protection
  • Intelligent power saving to extend battery life
  • Easy-to-use tag included for controlling the energizer
  • Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to four keypads
  • Powered by 240V mains and includes built-in battery for back-up power
  • Two built-in gate alarm inputs to monitor if the gates are open or closed

Specifications:

Weight 7.6 kg
Enclosure size

L370 x W232 x D145mm

Weight

4.8kg excluding battery (7AH)
7.0kg including battery (7AH)

IP rating

IPx4

Operating temperature

-10°C to 50°C

Operating humidity

< 80% non-condensing

Electrical supply voltage

240V

Typical power consumption

27VA (normal operating conditions)

Standby Time

6hrs (fully charged battery)

Energy output

4.8 Joule (500 Ohms load)

Open circuit voltage

8500V

Stock CodeDescription
E-M18S/V1Merlin Stealth M18S Energizer
