Omega End and Corner Bracket

This Omega End and Corner bracket is a versatile and flexible solution for use with an existing fence used when there is a corner, change of direction or an end post. The Omega system utilises the mechanical strength of an existing fence to reduce the cost of constructing a complete new system.


Omega Manual

Features:

  • Robust design for end and corner tensioning
  • Easy to transport reducing handling time and transport costs
  • Pre-punched holes every 100mm (Also available in 91mm)

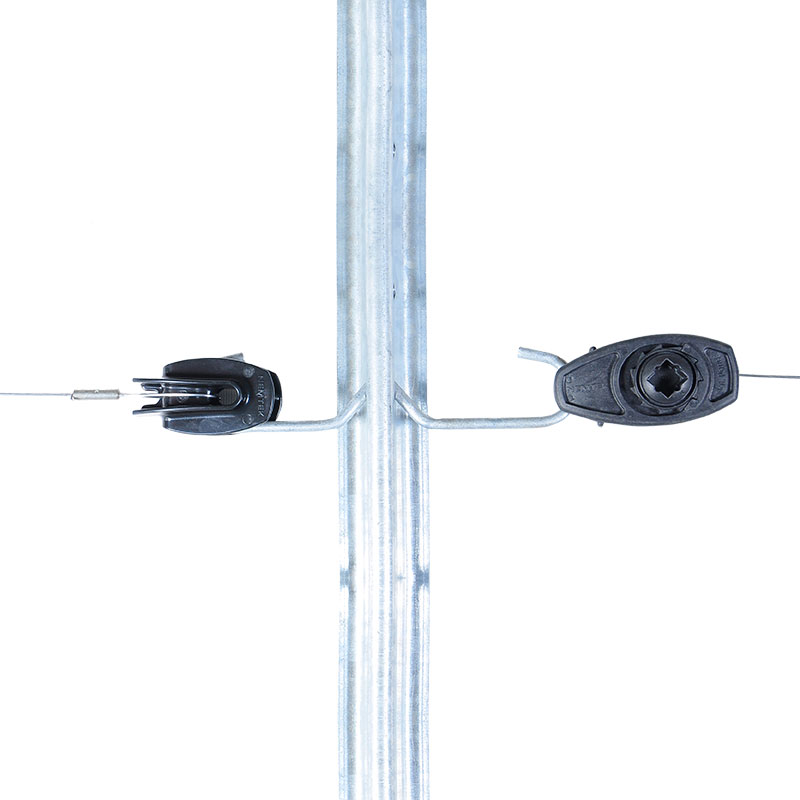

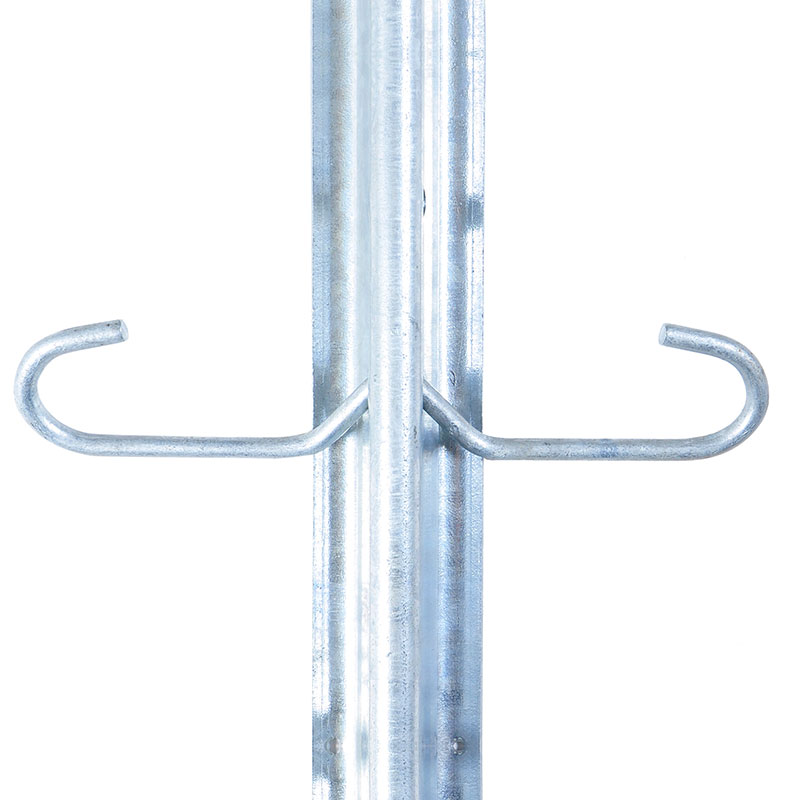

  • S-hooks are used in conjunction with the wire tensioners, strain insulators and springs to tension the electric fence wires.
  • The Omega pull through assemblies are used with the end and corner brackets to guide the wires around bends and to assist in a change of direction.
  • Can be configured and installed in various ways.

Specifications:

Weight N/A
Material

Steel

Finish

Hot dip galvanised

Steel Thickness

2mm

Lengths

1.8m
2.1m
2.4m
3.0m

Hole Spacing

91mm
100mm

Stock CodeDescription
EY-PRHDIP1800/2

1.8m * 2mm Omega End and Corner Bracket HDG (100mm)

EY-PRHDIP2100/2

2.1m * 2mm Omega End and Corner Bracket HDG (100mm)

EY-PRHDIP2400/2

2.4m * 2mm Omega End and Corner Bracket HDG (100mm)

EY-PRHDIP3000/2

3.0m * 2mm Omega End and Corner Bracket HDG (100mm)
