Square Tube Shield Pin Bracket

Square Tube Shield in Brackets are used to erect an electric fence and are supplied with insulators. Available in hot dip galvanised, or a hot dip galvanised and powder coated. The choice of a bracket should provide a good enough barrier to prevent a criminal from getting through or over the fence without triggering the alarm.


Features:

  • Ideal for coastal use
  • Not easy to bend
  • Easy to install
  • Additional insulators can be added onto the back to create a 7 wire or 8 wire bracket

Specifications:

Weight N/A
Material

Square tube

Dimensions

20 x 20 x 1.6mm

Lengths

6 wires (995mm)
8 wires (995mm)

Finish

Hot Dip Galvanised (HDG)
Hot Dip Galvanised (HDG) and Powder Coated (PC)

Associated insulator

Shield insulator

Packaging

10 in a sleeve

Stock CodeDescription

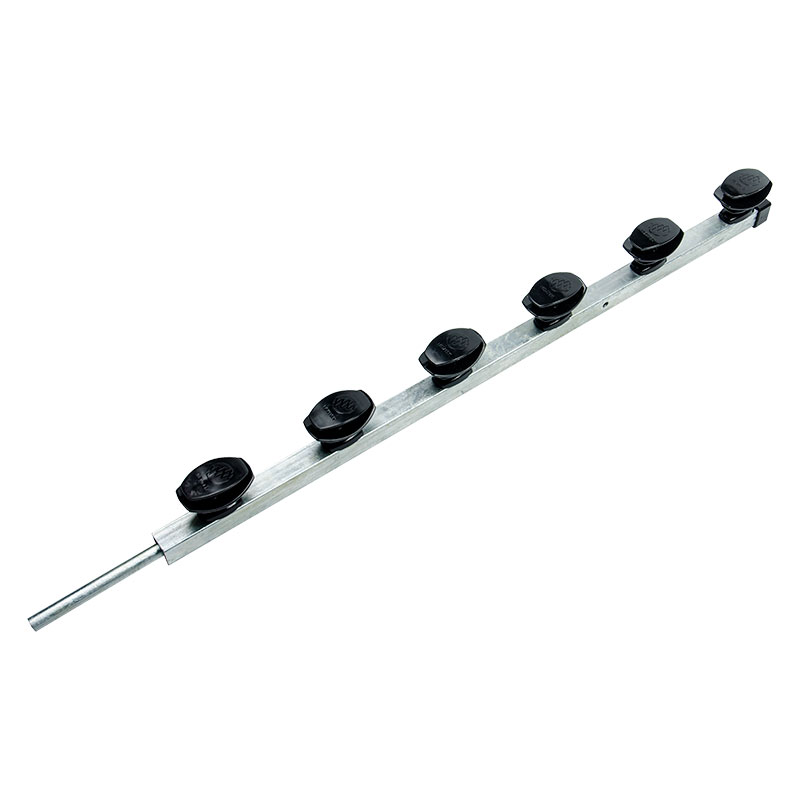

ESQR-6HDB

6 Wire Square Tube Shield Pin Bracket HDG with Black Insulator

ESQR-6HDW

6 Wire Square Tube Shield Pin Bracket HDG with White Insulator

ESQR-6HDPCB

6 Wire Square Tube Shield Pin Bracket HDG and Black PC with Black Insulator

ESQR-6HDPCW

6 Wire Square Tube Shield Pin Bracket HDG and White PC with White Insulator

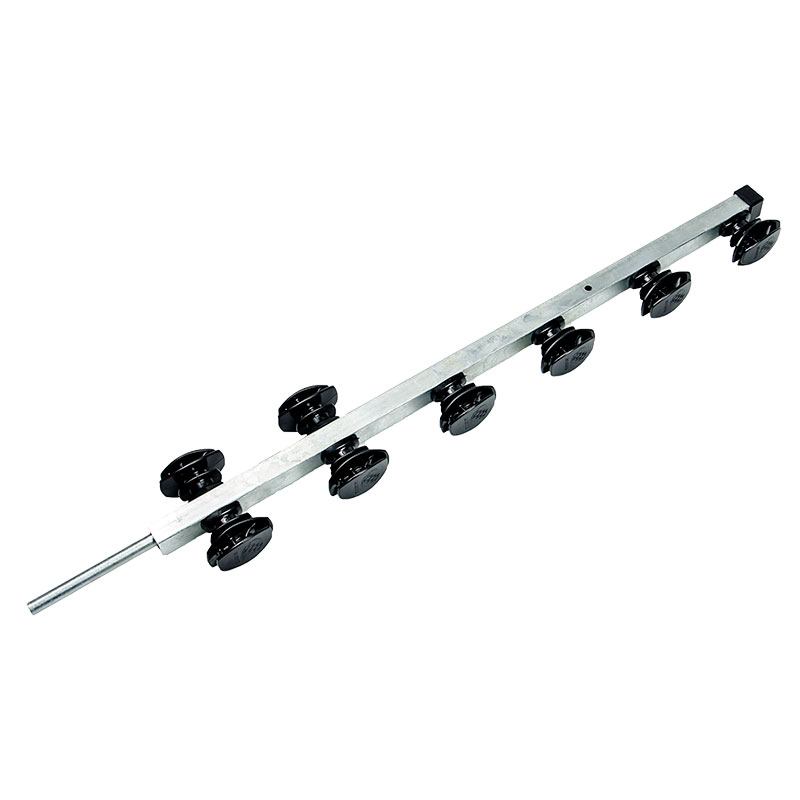

ESQR-8HDB

8 Wire Square Tube Shield Pin Bracket HDG with Black Insulator

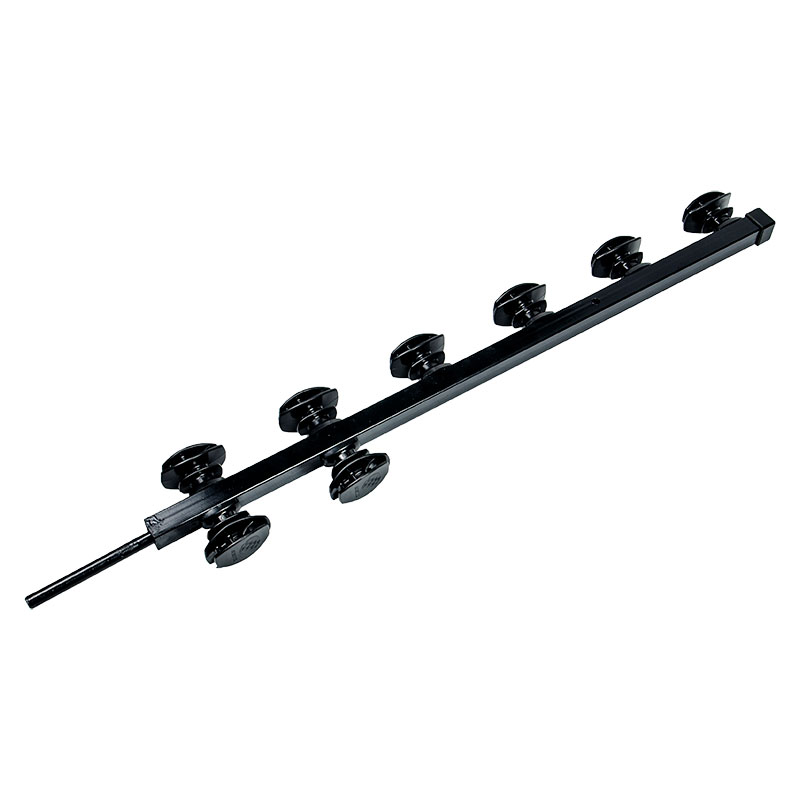

ESQR-8HDPCB

8 Wire Square Tube Shield Pin Bracket HDG and Black PC with Black Insulator
